Quad Lock Motorcycle - Handlebar Mount PRO - Adjustable

Why an adjustable motorcycle phone mount matters

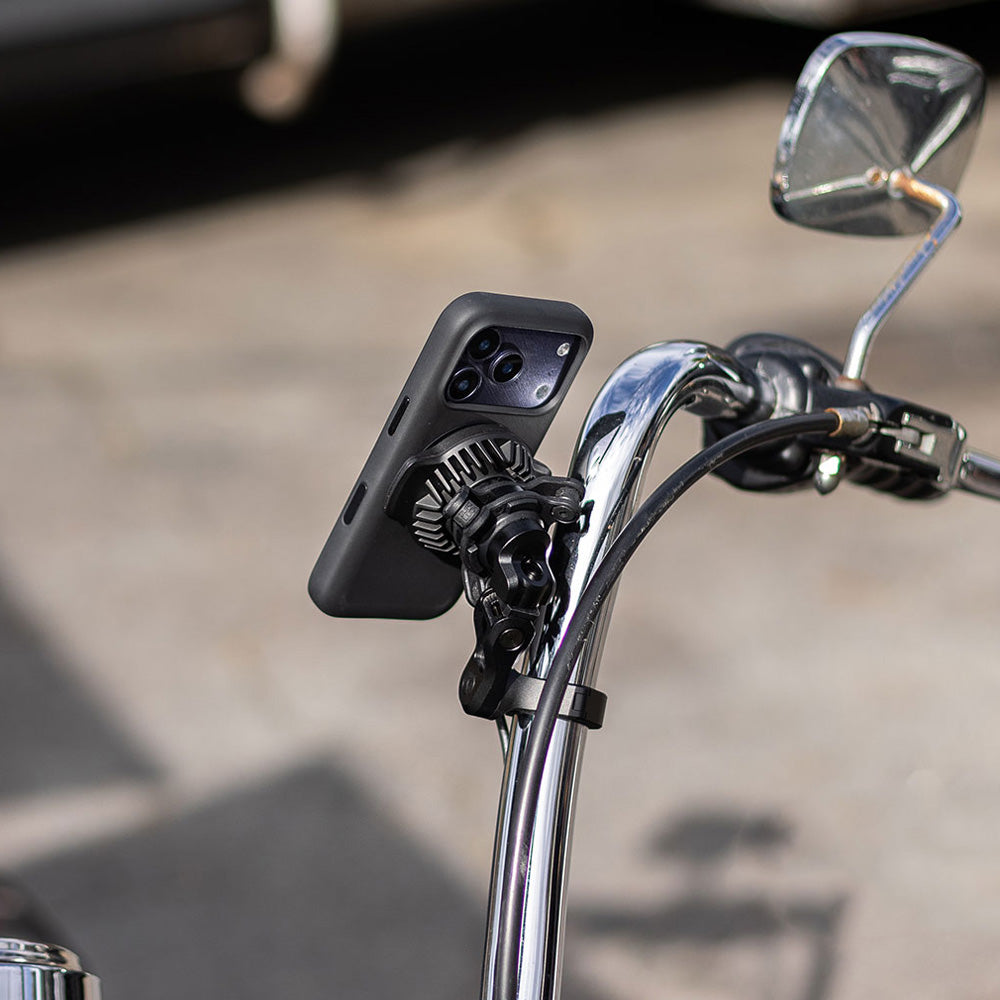

High-rise bars and steep fork rake change the angle your phone sits at, even when the mount itself is installed correctly. On a fixed mount, that means glare, an awkward glance down, or a screen you have to squint at while navigating. Riders running ape hangers, pullback bars, or long-rake custom forks have dealt with this for years, and Quad Lock built this mount specifically to solve it.

Single-bolt, 2-axis adjustment

The Handlebar Mount Pro Adjustable uses one bolt to control both tilt and rotation, so you can dial in your ideal viewing angle in a single motion.

• Adjustment range: 30–45° of fork rake, 4–12 inches of bar rise
• Full head rotation: 80° x 360°
• Locking mechanism: preload tension holds the set angle without over-tightening for ease of adjustment. Once the angle is set, lock it down with the provided Allen key.
• Build: anodised CNC-machined aluminium with black stainless steel hardware
• Lock system: Quad Lock's patented dual-stage lock for fast, secure attachment and removal
• Design: reversible, so the phone can sit lower and in line with the bars for a cleaner cockpit

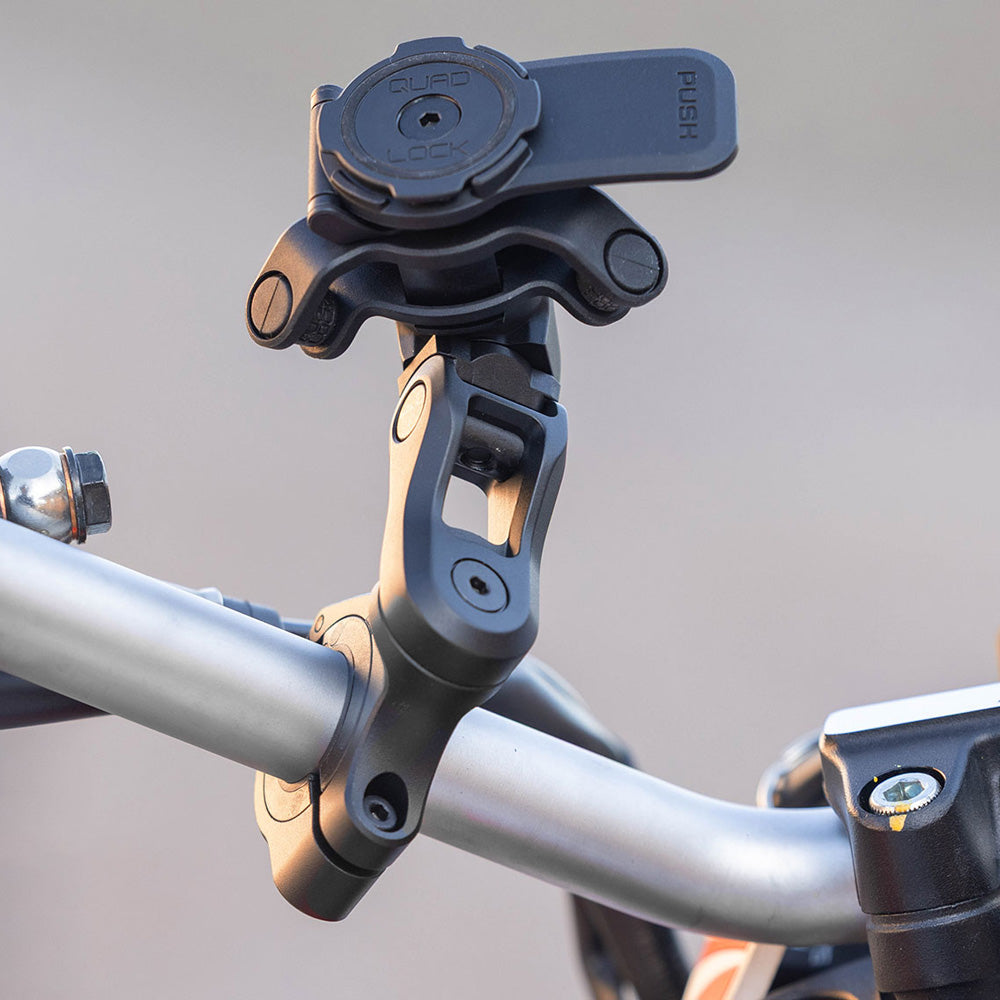

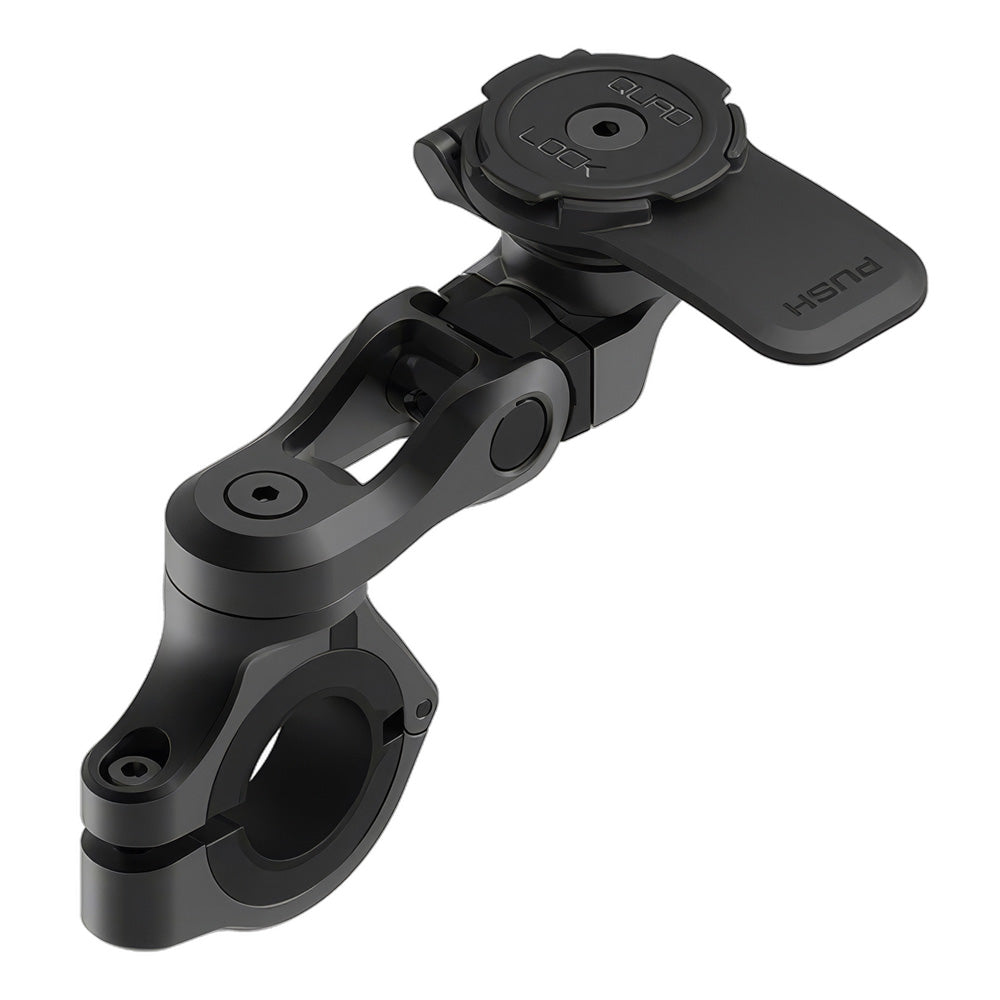

HANDLEBAR MOUNT PRO - ADJUSTABLE

• Black anodised aluminium clamp and arm, made by precision CNC
• Assembled with black lever & hardware
• Fits handlebar diameters: 22mm, 25mm, 28mm, 32mm and 35mm
• Adjustable mount head for your ideal viewing angle, 360 degree rotation and up to 80 degrees of tilt
• Rotation and tilt set together with a single screw
• Preload tension holds the arm in position while you set your angle
• 360 degree arm rotation on the handlebar
• Discreet cable route for USB charge cables (remove plug in upper clamp to access)
• Dimensions: 108 x 68 x 88mm (4.25 x 2.68 x 3.46 in)
• Weight: 130g (4.6 oz)

*Quad Lock Motorcycle - Vibration Dampener QLA-VDM is recommended for all Quad Lock motorcycle products.

NOTE: Case not included
