Quad Lock

Quad Lock 360 Base - Suction

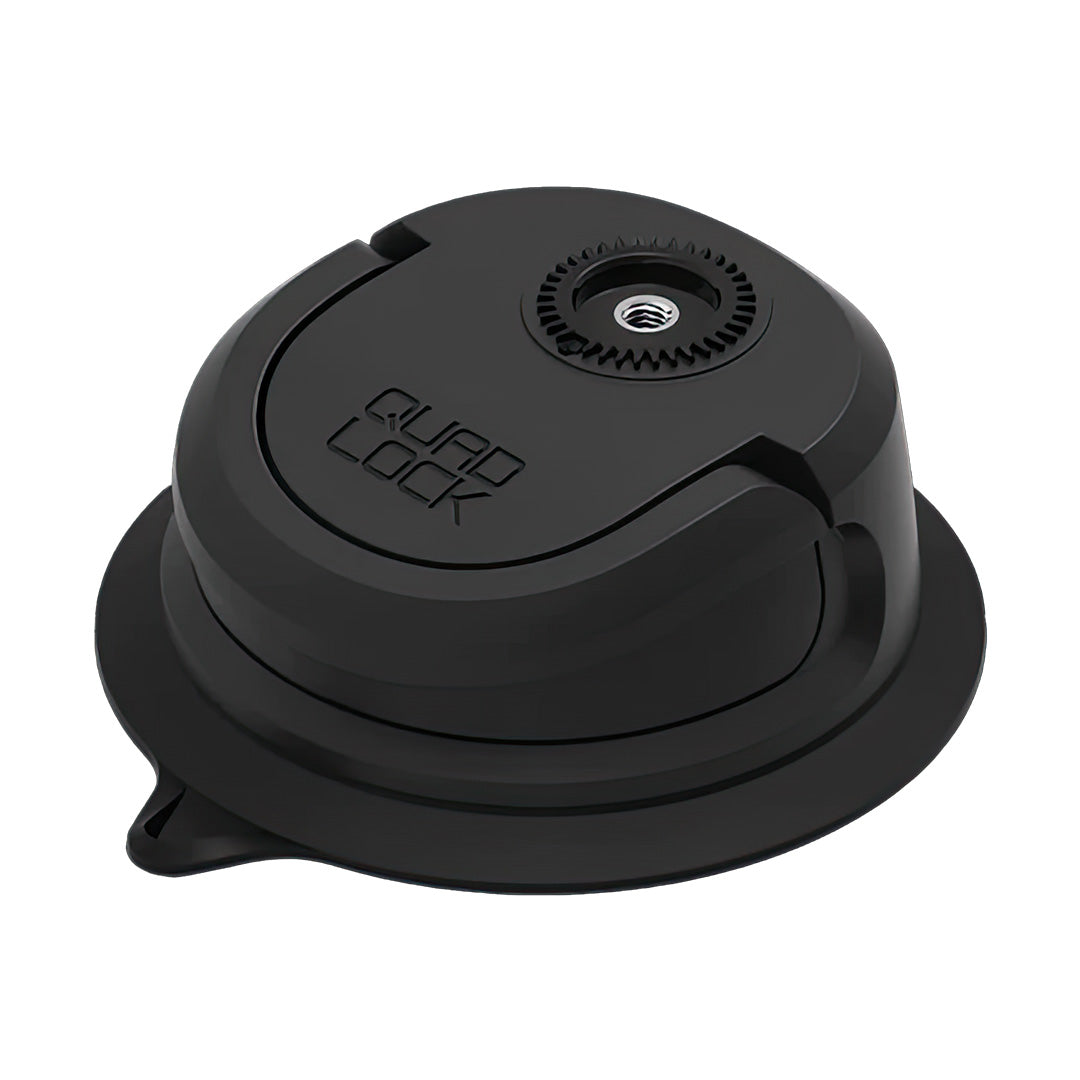

Name: Quad Lock 360 Base - Suction
Brand: Quad Lock
SKU: QLP-360-SB
Price: 55.0 NZD
Availability: InStock

SKU: QLP-360-SB

$55.00

or 4 payments of

$13.75

~~$0.00~~ $13.75

with

Product variants

$55.00

FIND A RETAILER

Description
Reviews

Repositionable, high strength suction for versatile mounting. The lever actuated suction makes quick transitions between applications simple. Securely mount to smooth and non-porous surfaces such as windshields and dashboards, making it ideal for use in marine, aero and drive applications.

The Suction Base is able to withstand ambient temperatures ranging -10°C to 50°C (14°F to 122°F) without experiencing loss of suction. It is recommended to include both an ARM and HEAD to allow sufficient clearance for the lever, unless combining with the Action Camera Head, which allows sufficient clearance without the need for an arm.

WHAT'S INCLUDED

1 x Quad Lock 360™ Suction Base

TECH SPECS

Suits smooth, non-porous surfaces (>1m curvature radius)
Suits flat and slightly curved surfaces
Suction cup is durable and repositionable
Easy-to-use locking and unlocking lever
Glass filled nylon housing
Quad Lock 360™ ARM not required when combining with the Quad Lock 360™ Action Camera Head
Quad Lock 360™ ARM required with all other HEADS to ensure enough clearance for locking and unlocking the Suction Base
-10°C to +50°C (14°F to 122°F) ambient / outside temperature
Supports up to 1.2kg (2.64 pounds)

The Suction Base can be attached to a number of different flat and gently curved surfaces, however, it is not intended for severely curved surfaces (ie. <1m curvature radius).

The Suction Base will adhere to smooth, non-textured, non-porous surfaces such as:

Glass or plastics such as PC or Acrylic (eg. windshields)
Smooth painted or powder coated metal or steel (eg. vehicle bodies)
Fibreglass with gelcoat or marine paint (eg. boat trim)
Gently curved surfaces (>1m curvature radius)

Recommended applications:

Cars / 4x4 / 4WD

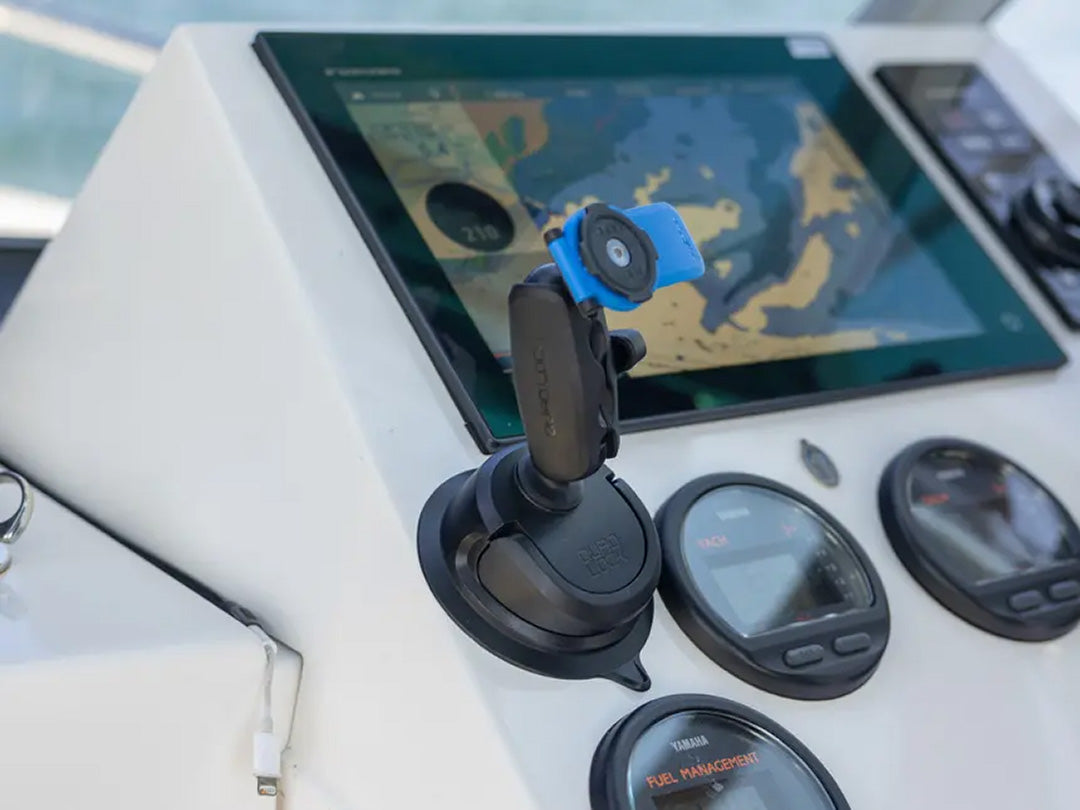

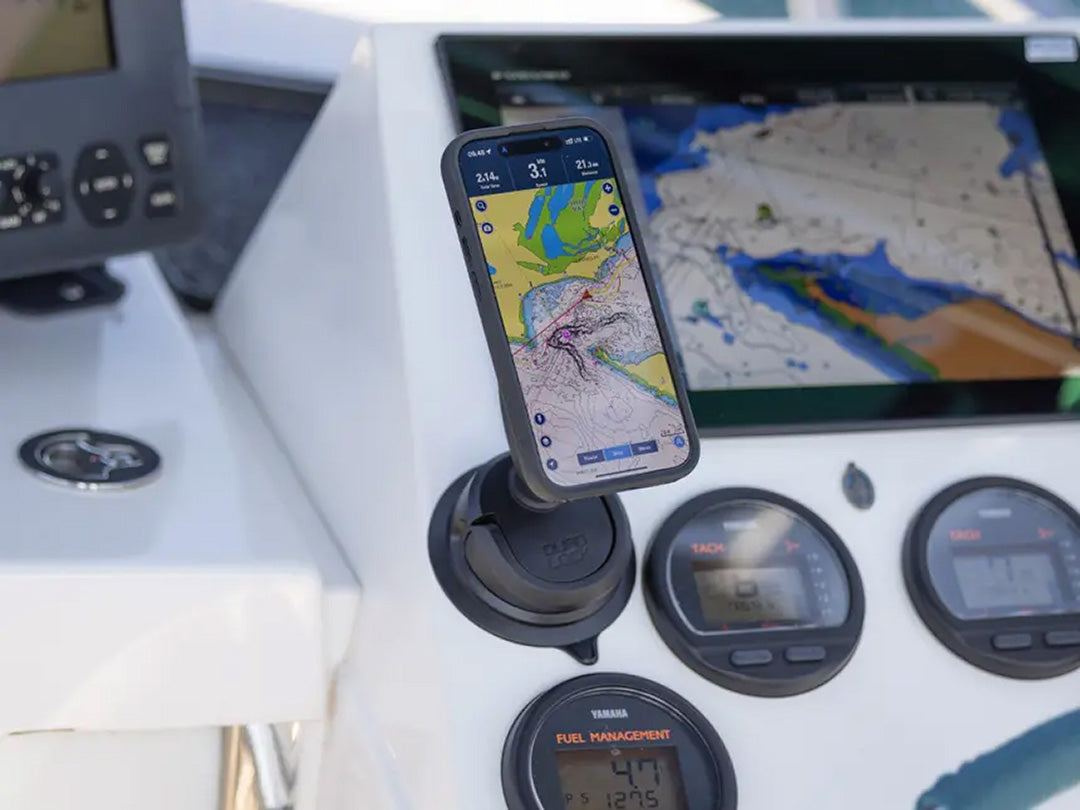

Boats

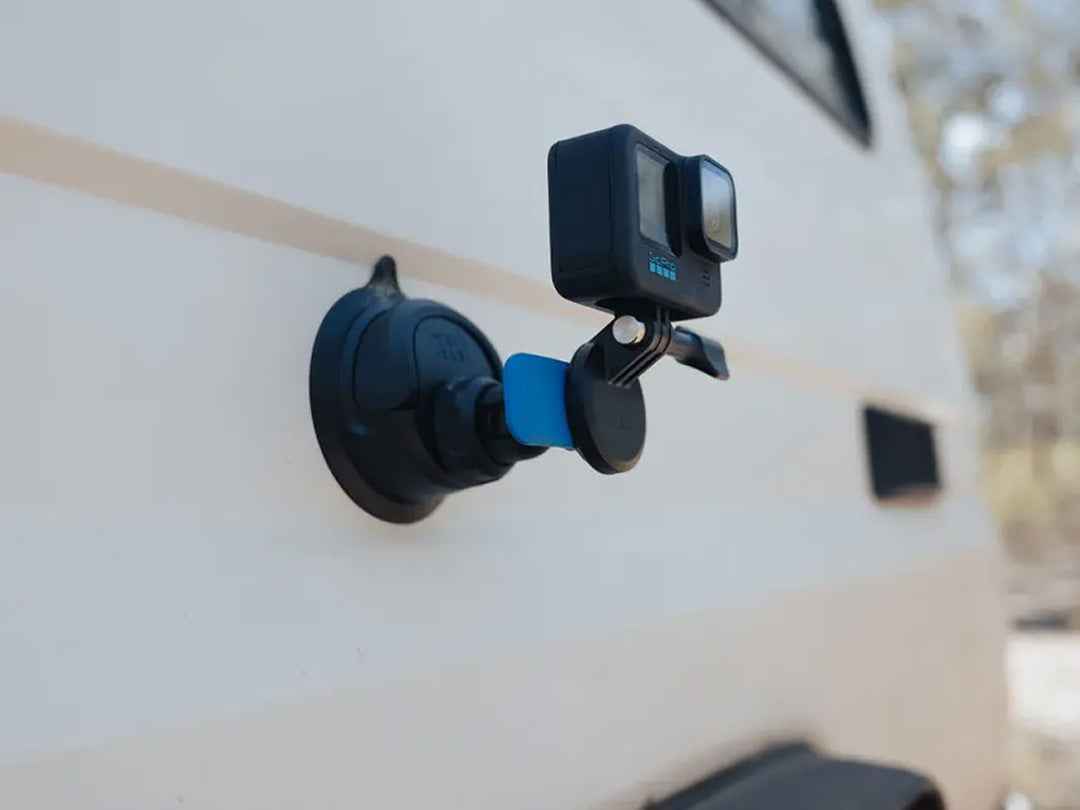

Caravans
Light aircraft
Any low vibration element

It is not recommended for the following substrates:

Organic materials such as leather, unsealed wood or fabric
Soft touch, rough or textured coating or paint

Although possible, we do not recommend using the Suction Base on the following vehicles.

Motorcycles
Scooters
ATVs
Anything that causes high vibrations or receives constant exposure from outdoor elements

Clean the surface with a damp cloth and allow it to dry before attaching.

Ensure mount position does not obstruct vehicle safety features such as airbags.

-------------------------------------------------------------------------------------------------------------------------------------------------------

The Quad Lock 360™ system allows you to create the perfect phone mounting setup for your unique needs. Choose from 9 base options, 3 extension arms, and 2 mounting head options to configure the ideal smartphone mount for your active lifestyle!
